Smart BMS Battery Protection Board with GPS Remote Control Monitoring
Internal Reference :
905387575383-6981-1
100% original guarantee
Return within 30days
Worldwide fast delivery

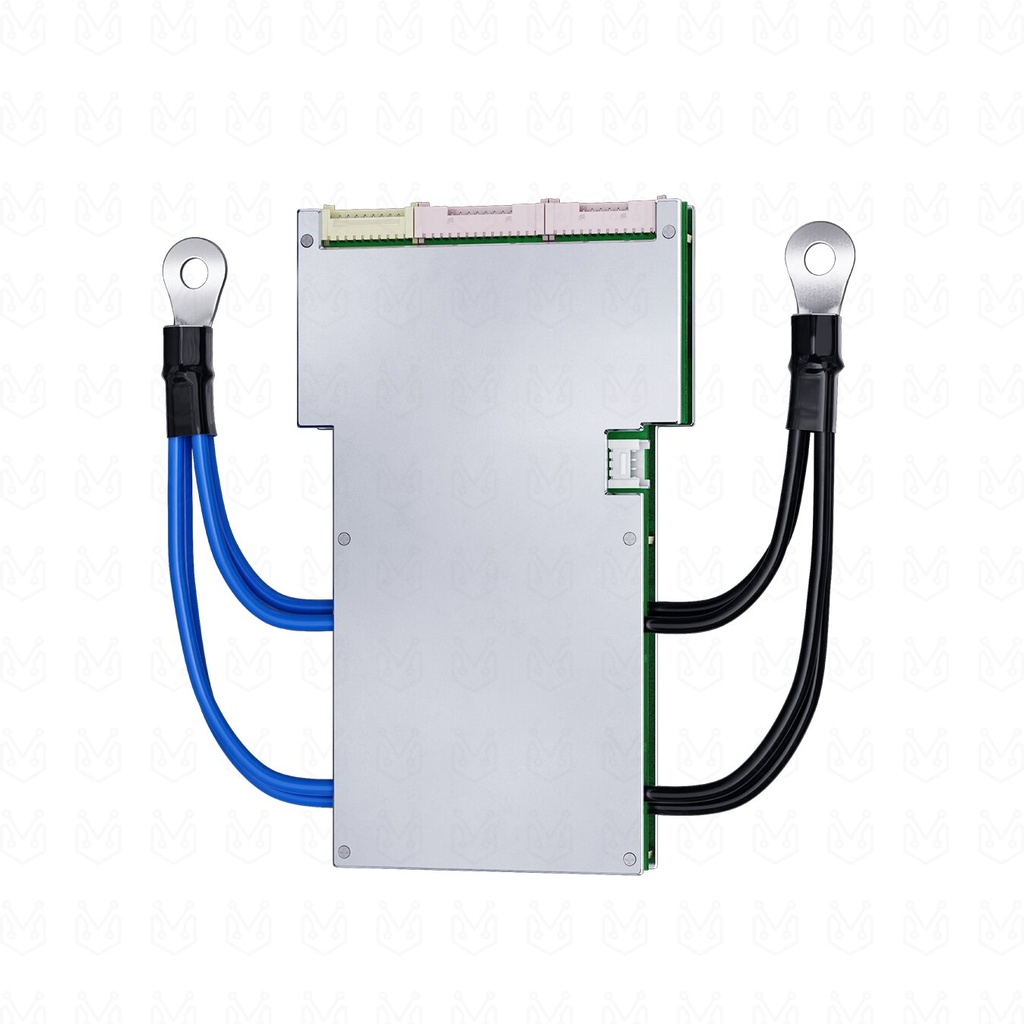

Advanced Battery Management System designed for 7-24S lithium ternary and LiFePO4 battery packs, integrating real-time monitoring and GPS-based remote control for enhanced safety and convenience. The system supports multiple current ratings to suit various power requirements, providing overcharge, over-discharge, overcurrent, and short circuit protection.
Built with a robust aluminum alloy housing for efficient heat dissipation, this smart BMS ensures stable performance in demanding applications such as electric vehicles, energy storage systems, and industrial equipment. Remote monitoring and control are enabled via a dedicated GPS module, allowing users to track battery status and location from anywhere.

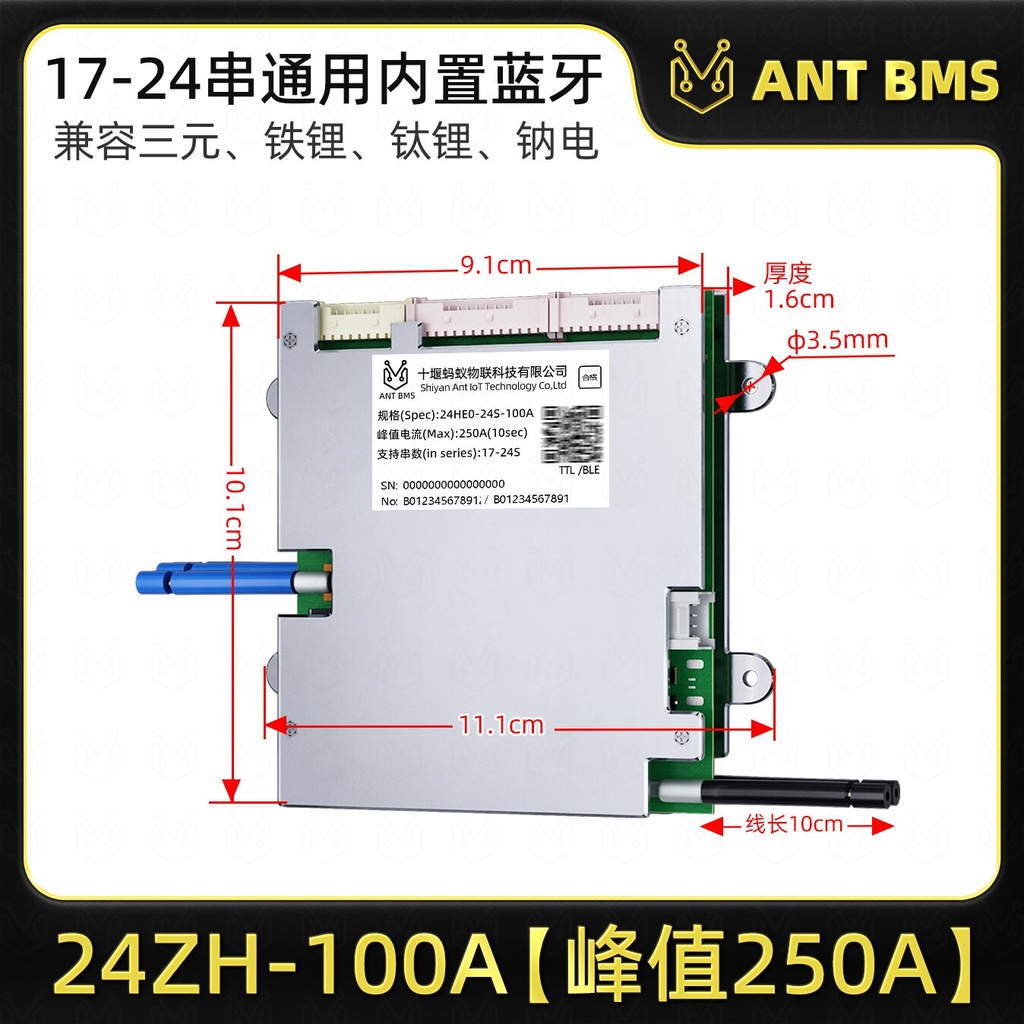

Specifications
| Brand | Ant |
| Type | Smart Battery Management System (BMS) |
| Compatible Battery Types | Lithium Ternary (Li-ion), Lithium Iron Phosphate (LiFePO4) |
| Supported Series Configurations | 7-16S, 17-24S |
| Available Current Ratings | 80A, 100A, 130A, 220A |
| Peak Current | 200A, 250A, 325A, 550A (model dependent) |

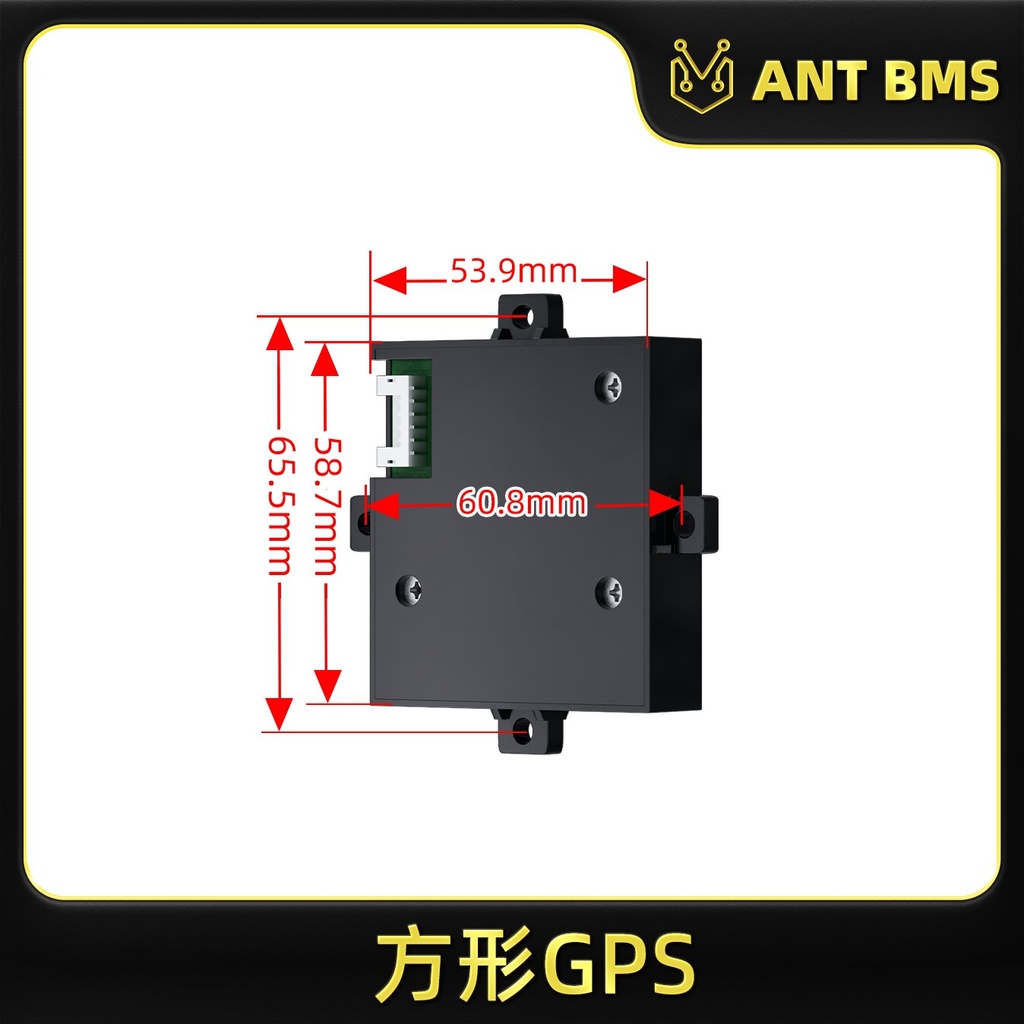

| Remote Control | Yes (requires separate GPS remote module) |

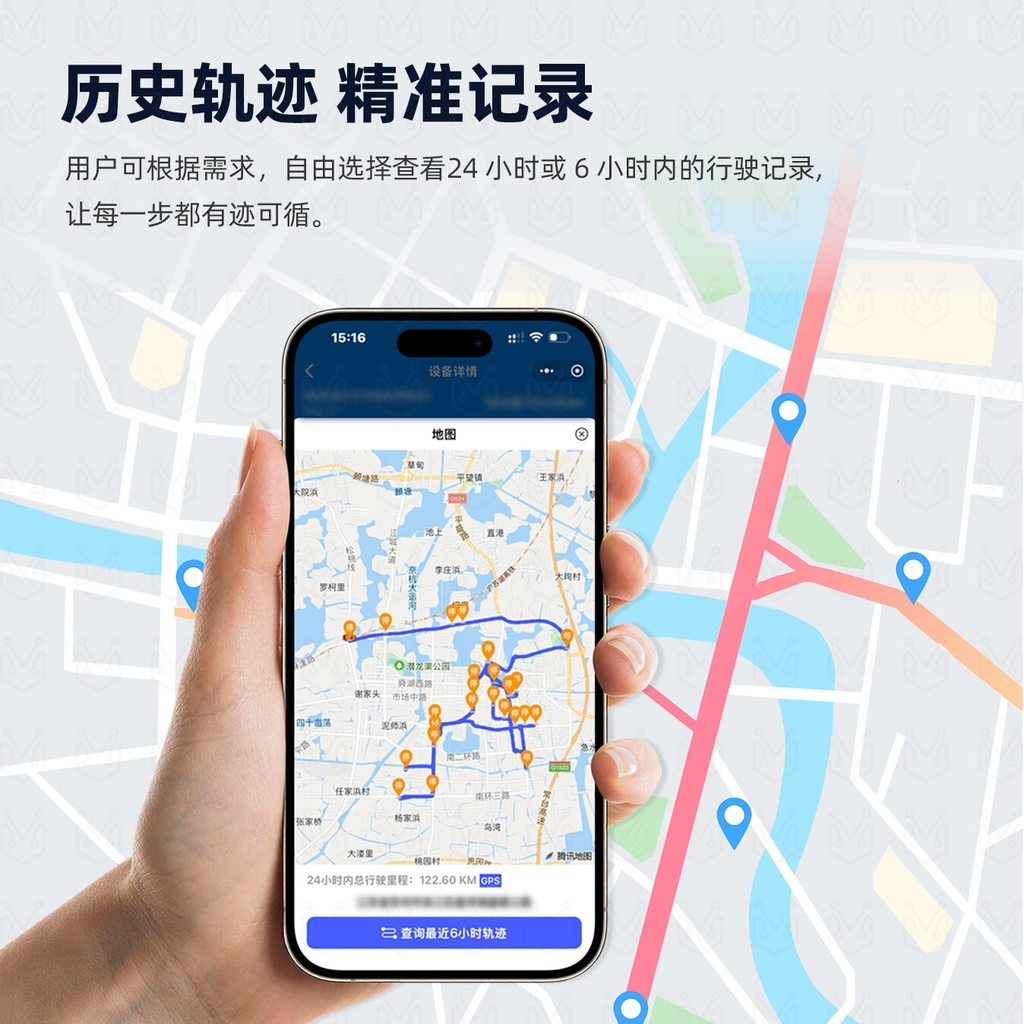

| Monitoring | Real-time status and location tracking |
| Protection Features | Overcharge, Over-discharge, Overcurrent, Short Circuit |
| Housing Material | Aluminum Alloy |
| Application | Electric Vehicles, Energy Storage Systems, Industrial Equipment |
Compatibility
Compatible with 7-16S and 17-24S lithium ternary (Li-ion) and lithium iron phosphate (LiFePO4) battery packs. Suitable for electric vehicles, energy storage systems, and industrial equipment.
What's included
- 1 x Smart BMS Protection Board
- 1 x Set of Connection Cables
| Color classification | 17-24-100A【Peak 250A】【Need to purchase GPS remote or 17-24-130A【Peak 325】【Need to purchase GPS remote or 17-24-220A【Peak 550A】【Need to purchase GPS remote or 7-16-80A【Peak 200A】【Need to purchase GPS remote m or GPS positioning remote control module】 or 17-24-130A【Peak 325】【Need to purchase GPS remote |
