Smart Lithium Battery Protection Board BMS 7-17 Series Bluetooth
Internal Reference :
989021210127-d471-1
100% original guarantee
Return within 30days
Worldwide fast delivery
This smart Battery Management System (BMS) provides comprehensive protection and active equalization for 7 to 17 series lithium iron phosphate and ternary lithium battery packs. It features integrated Bluetooth for real-time monitoring and configuration via a mobile app, ensuring optimal performance and longevity.
Designed for electric vehicle and energy storage applications, the board supports continuous discharge currents from 40A to 100A with higher peak capabilities. Its robust construction and smart balancing technology safeguard against overcharge, over-discharge, overcurrent, and short circuits, making it a reliable core component for custom battery builds.
Specifications
| Battery Type | Lithium Iron Phosphate, Ternary Lithium |
| Series Support | 7-17S |
| Rated Voltage | 68V |
| Continuous Discharge Current | 40A, 60A, 80A, 100A |
| Peak Discharge Current | 100A, 150A, 200A, 250A |
| Communication | Bluetooth |
| Balancing Type | Active Equalization |
| Protection Features | Overcharge, Over-discharge, Overcurrent, Short Circuit |
| Condition | New |
| Warranty | 1 Year |
Videos
Compatibility
Compatible with 7 to 17 series lithium iron phosphate (LiFePO4) and ternary lithium battery packs with a total voltage up to 68V.

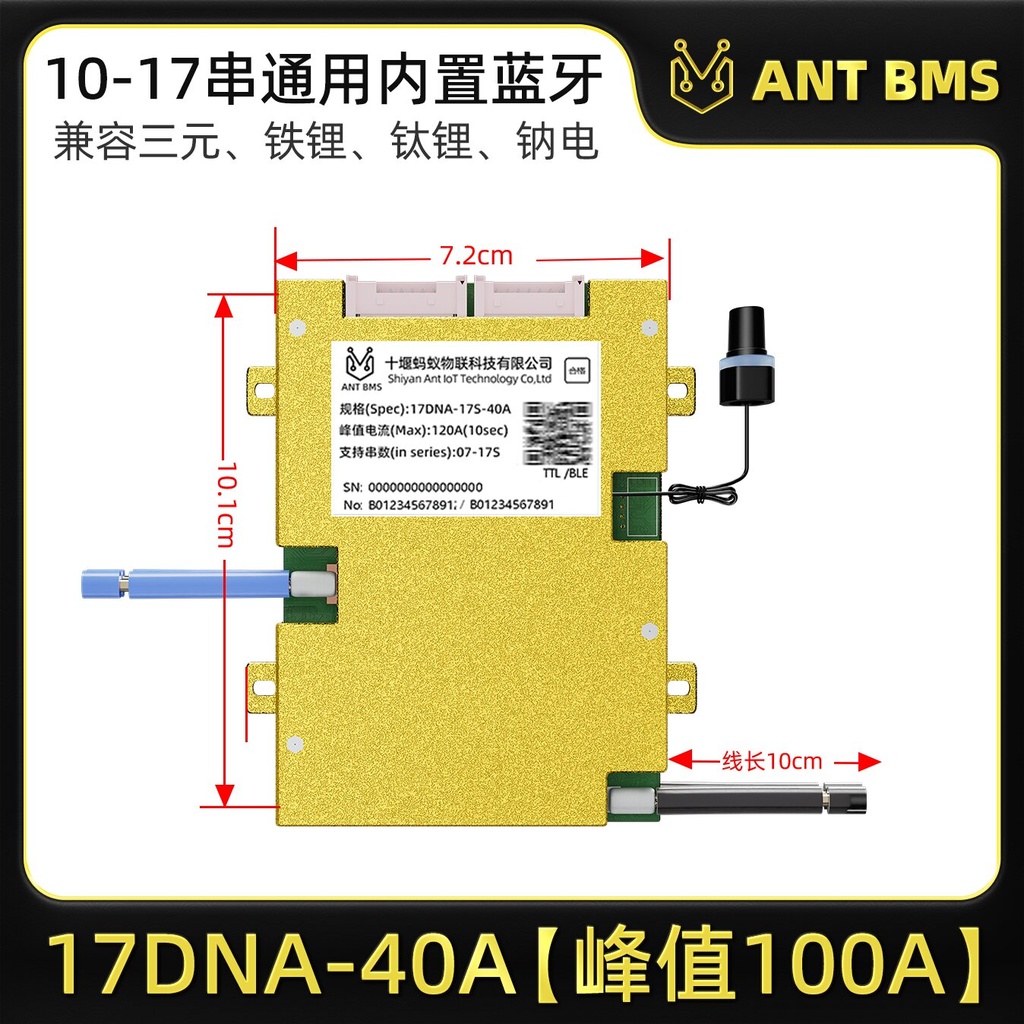

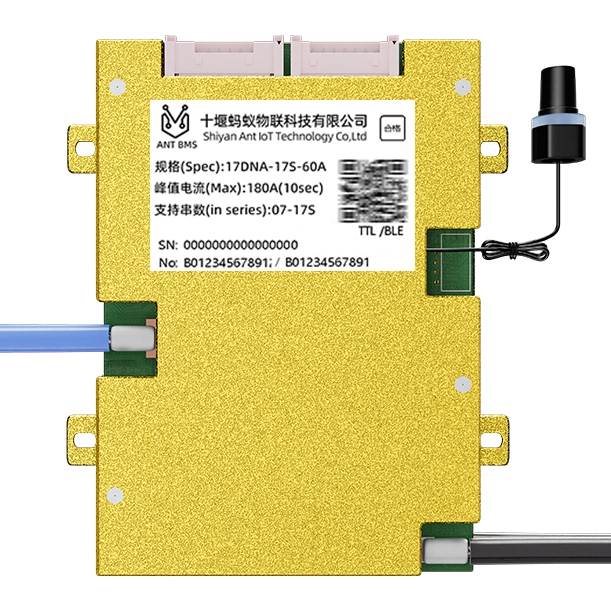

| Product Specifications | 10-17 Series 40A [Peak 100A] or 10-17 Series 60A [Peak 150A] or 10-17 Series 80A [Peak 200A] or 10-17 Series 100A [Peak 250A] or 10-17 string 100A [peak 250A] or 10-17 strings 80A [peak 200A] or 10-17 strings 60A [peak 150A] or 10-17 strings 40A [peak 100A] |
