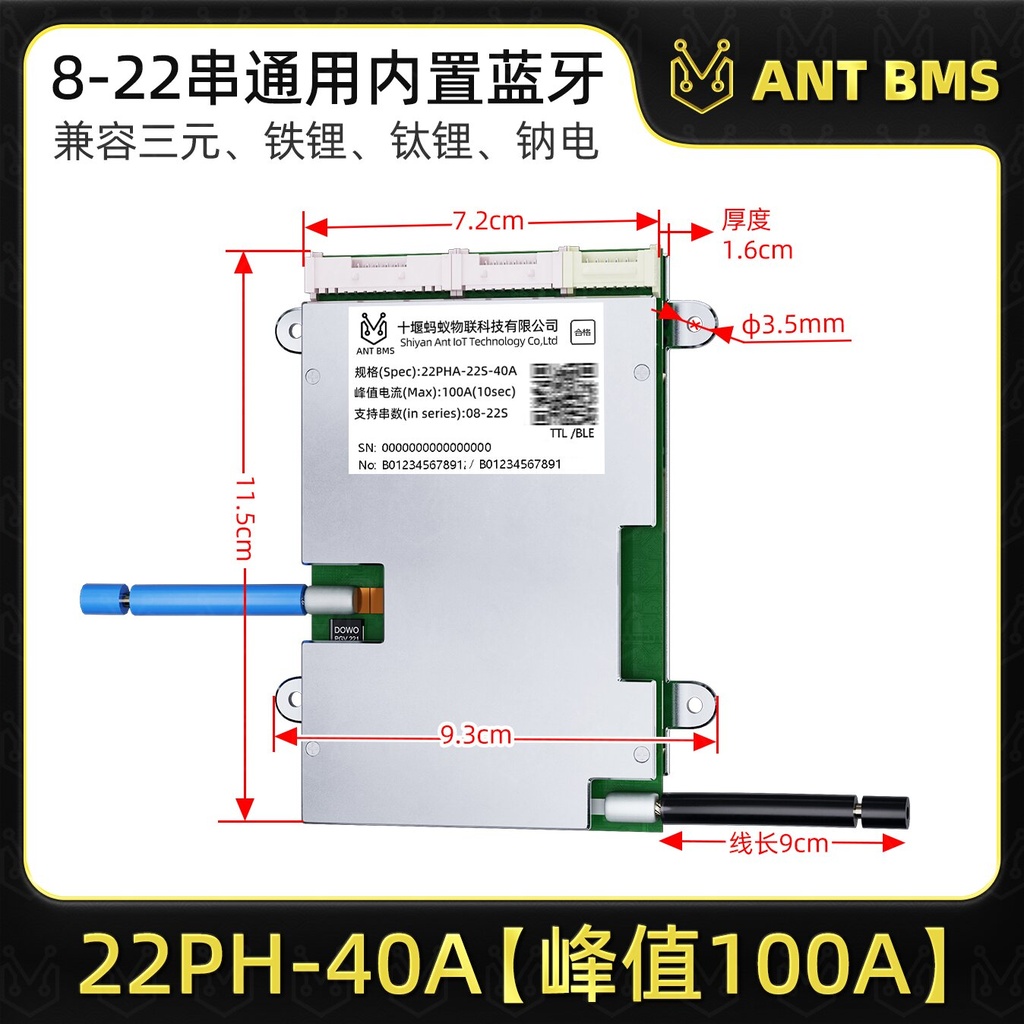

Universal Lithium Battery Protection Board 8-22S 48V 60V with Bluetooth
Internal Reference :
695358573531-52c5-1
100% original guarantee
Return within 30days
Worldwide fast delivery
This universal battery management system (BMS) board supports 8-22 series lithium batteries, including ternary and LiFePO4 chemistries. It features an integrated Bluetooth module for real-time monitoring and management via smartphone. The same-port design ensures efficient charge and discharge regulation for 48V and 60V battery packs.
Compatible Chemistry: Ternary Lithium, LiFePO4
Series Count: 8-22S
Voltage Support: 48V, 60V
Connectivity: Bluetooth
Port Configuration: Common Port
Protection Functions: Overcharge, Over-discharge, Over-current, Short-circuit

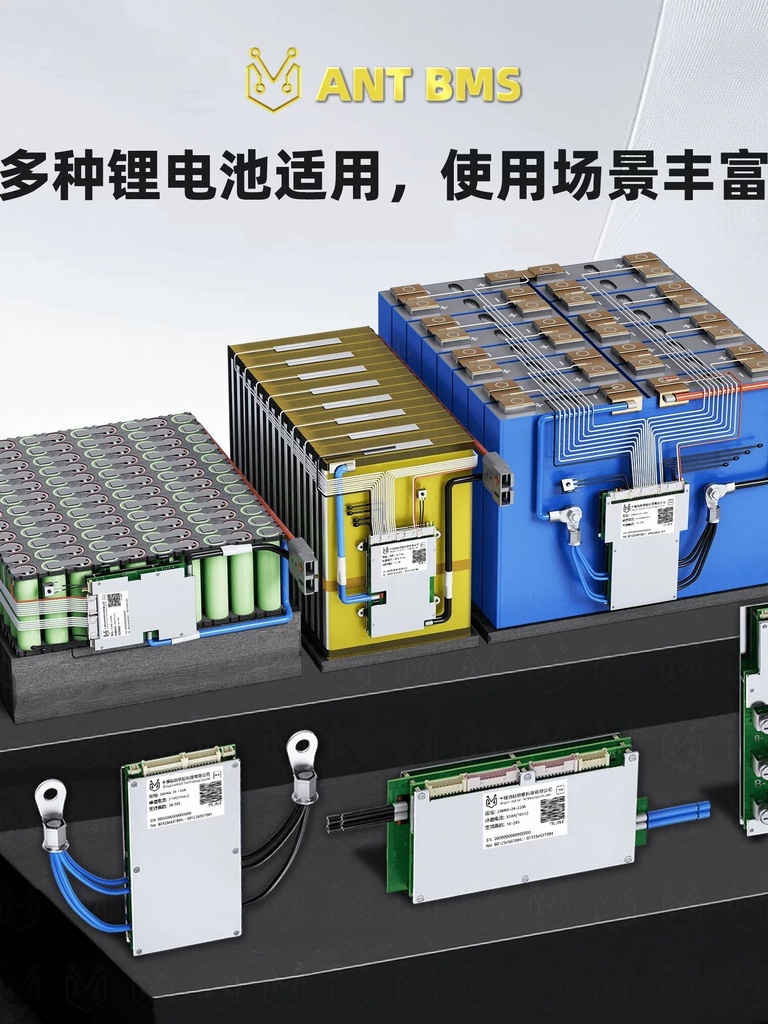

Application: Electric vehicles, Energy storage systems
| Color classification | 8-22S 40A[Peak 100A] or 8-22S 80A[Peak 200A] or 8-22S 130A[Peak 325A] or 8-22S 170A[Peak 425A] or 8-22S 230A[Peak 575A] |
