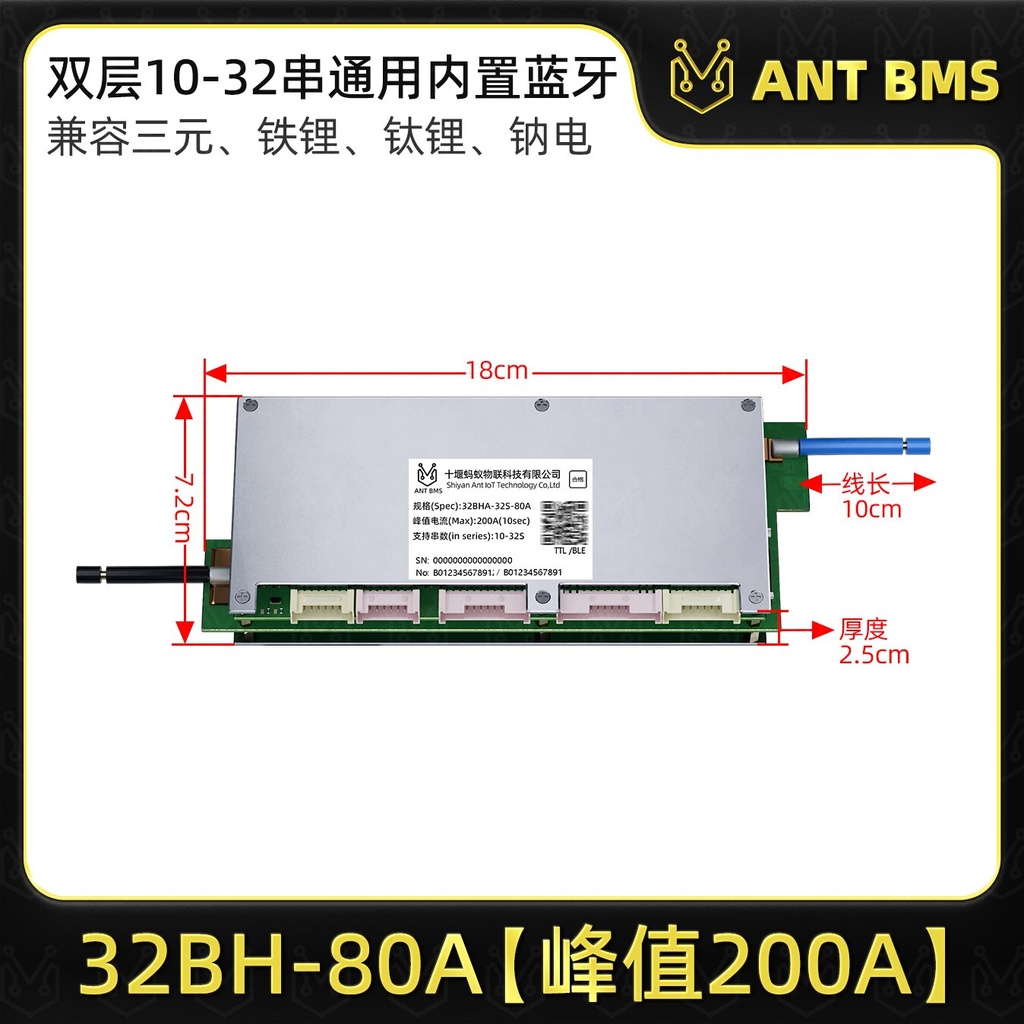

10-32 Series 96V Smart Lithium Battery Protection Board with Bluetooth
Internal Reference :
656204375139-ce07-1
100% original guarantee
Return within 30days
Worldwide fast delivery
This intelligent Battery Management System (BMS) supports 10 to 32 series lithium iron phosphate and ternary lithium battery packs, providing comprehensive protection and active balancing. It features a built-in Bluetooth module for real-time monitoring and configuration via a dedicated mobile application.
Engineered for high-current applications, the board offers robust overcharge, over-discharge, overcurrent, and short circuit protection. Its smart balancing technology ensures optimal cell performance and extends overall battery life, making it ideal for electric vehicles, energy storage systems, and backup power solutions.
Specifications
| Brand | Ant |
| Type | Battery Management System (BMS) |
| Compatible Battery Types | Lithium Iron Phosphate (LiFePO4), Ternary Lithium (Li-ion) |
| Series Support | 10-32S |
| Nominal Voltage | 96V |
| Peak Current | 200A, 250A, 300A (depending on variant) |
| Continuous Current | 80A, 100A, 120A (depending on variant) |
| Connectivity | Bluetooth |
| Balancing Type | Active / Smart Balancing |
| Protection Features | Overcharge, Over-discharge, Overcurrent, Short Circuit |
| Application | Electric Vehicles, Energy Storage, Backup Power |
Compatibility
Compatible with 10 to 32 series lithium iron phosphate (LiFePO4) and ternary lithium (Li-ion) battery packs with a nominal voltage of 96V. Suitable for custom battery builds in electric vehicles, solar storage systems, and industrial backup power applications.
How to use
Connect the BMS to the battery pack according to the wiring diagram, starting from the negative terminal. Install the mobile app, enable Bluetooth, and pair with the device to monitor voltage, current, and temperature in real time. Configure protection parameters through the app interface as needed.
What's included
- 1 x Smart BMS Protection Board
- 1 x Bluetooth Module
- 1 x Wiring Harness
- 1 x User Manual
| Color classification | 10-32 Series 80A [Peak 200A] or 10-32 Series 100A [Peak 250A] or 10-32 Series 120A [Peak 300A] |
